Resistors

MicroelettricaHeine has more than 100 years of experiences in design and manufacturing of Power Resistors for the most demanding applications.

We focus on customised solutions and the precise implementation of your requirements, based on our product ranges of aluminium resistors, wirewound resistors, plate resistors, band resistors, load banks and neutral earthing resistors. Therefore, we are using a compact and modular design to be most cost-efficient.

Among other applications our power resistors are widely used in industrial applications such as automation, in the infrastructure sector or in rail vehicle applications. Our resistors are available from 50W to the multiple MW range. For relevant applications, resistors with UL certification are available.

Explore Resistor Applications

All Resistor Series

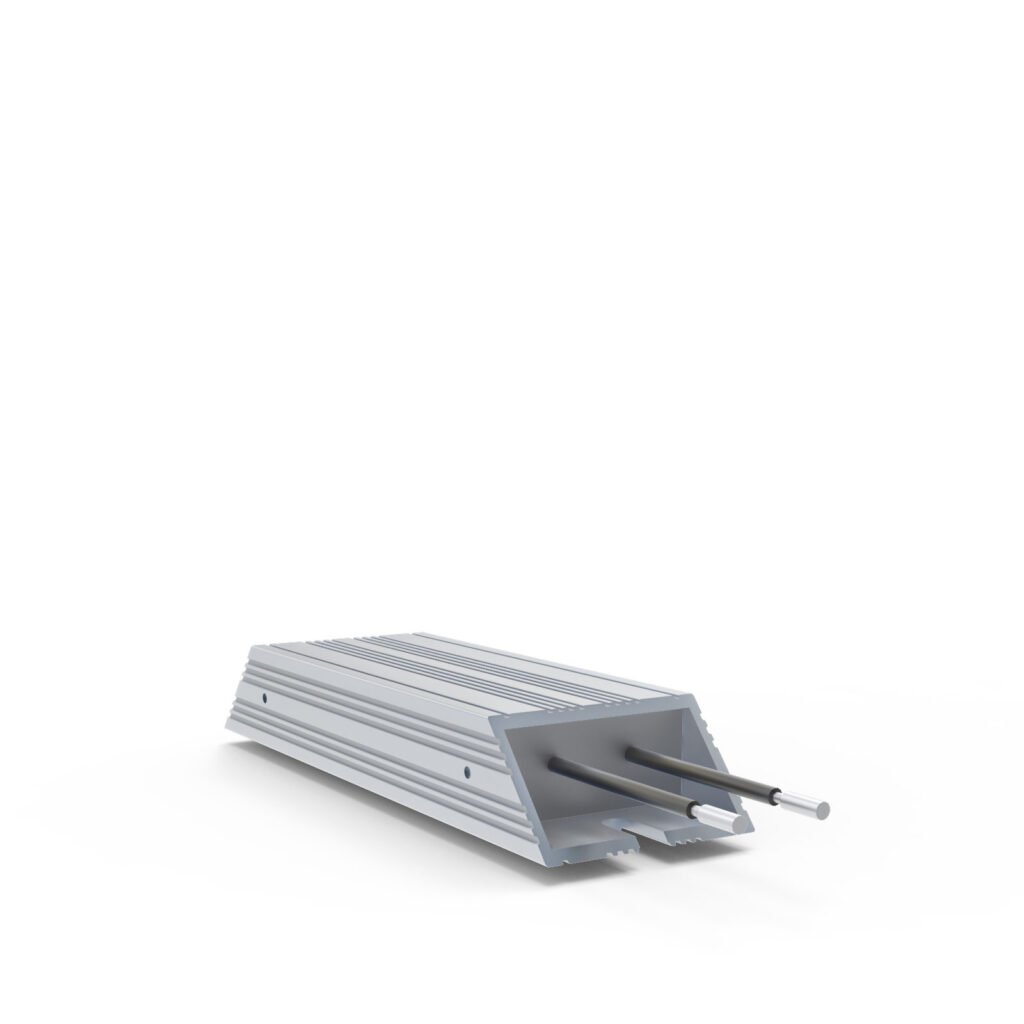

Aluminium resistors

Pc  50 ÷ 10,000 W
R  2.2 ÷ 1800 Ω
IP  IP20, IP66

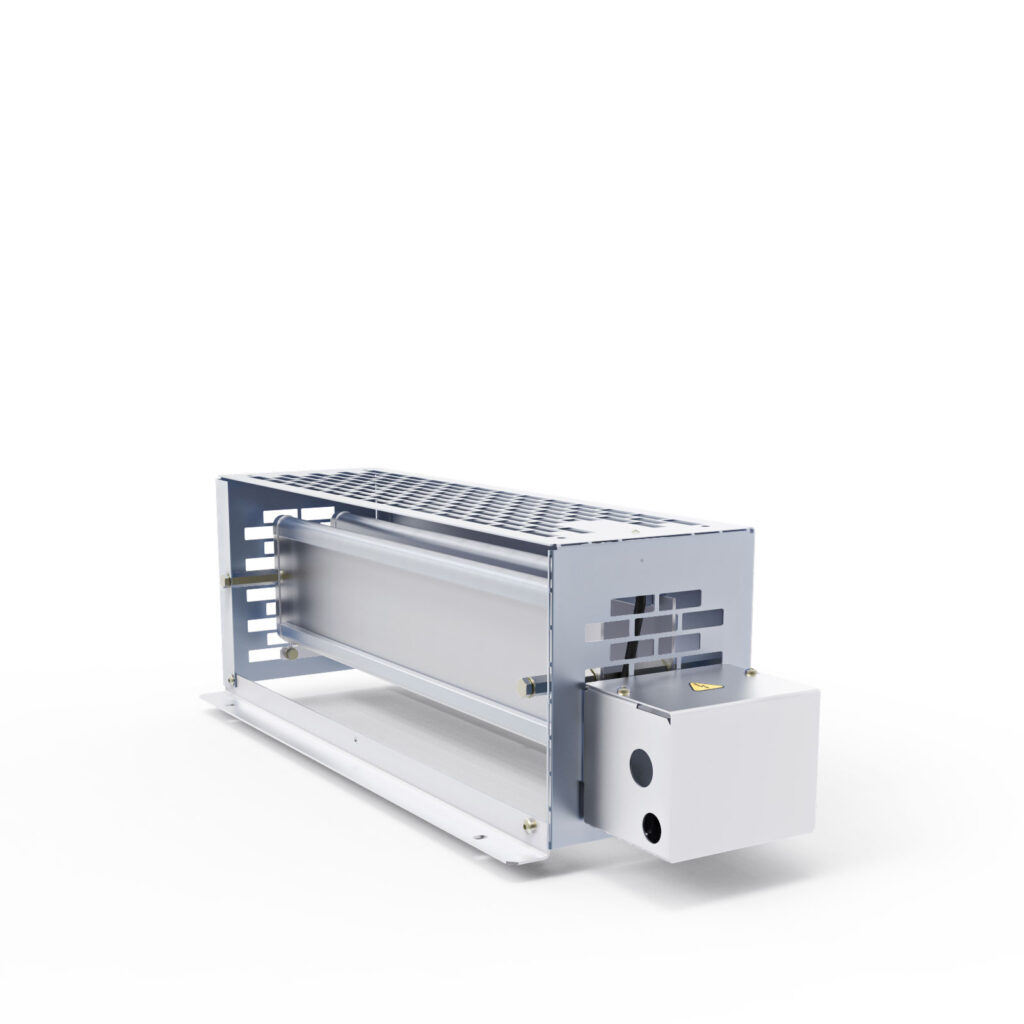

Frame resistors

Pc  1 ÷ 18 kW
R  1.0 ÷ 180 Ω
IP  IP00, IP20

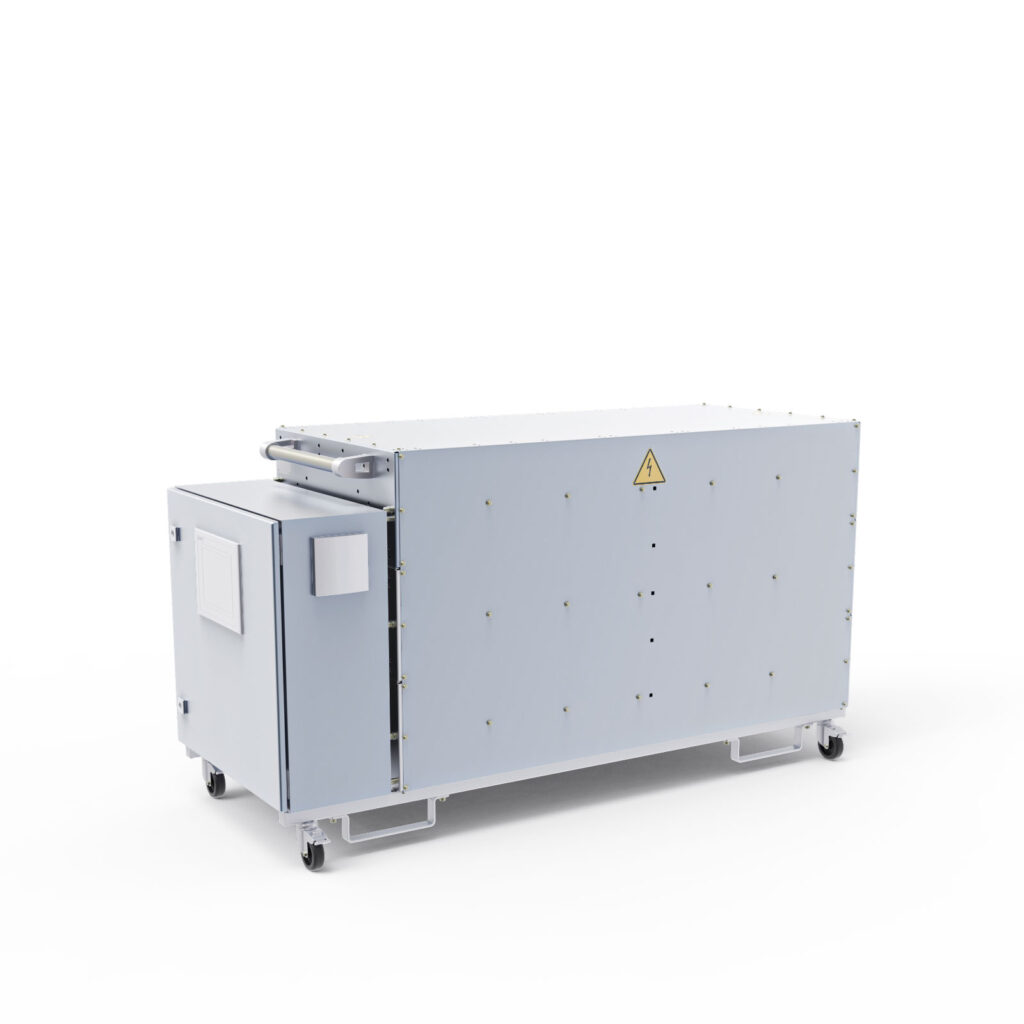

Load Bank Mobile

Pc  up to MW range
R  individual
IP  IP20, IP23, or higher

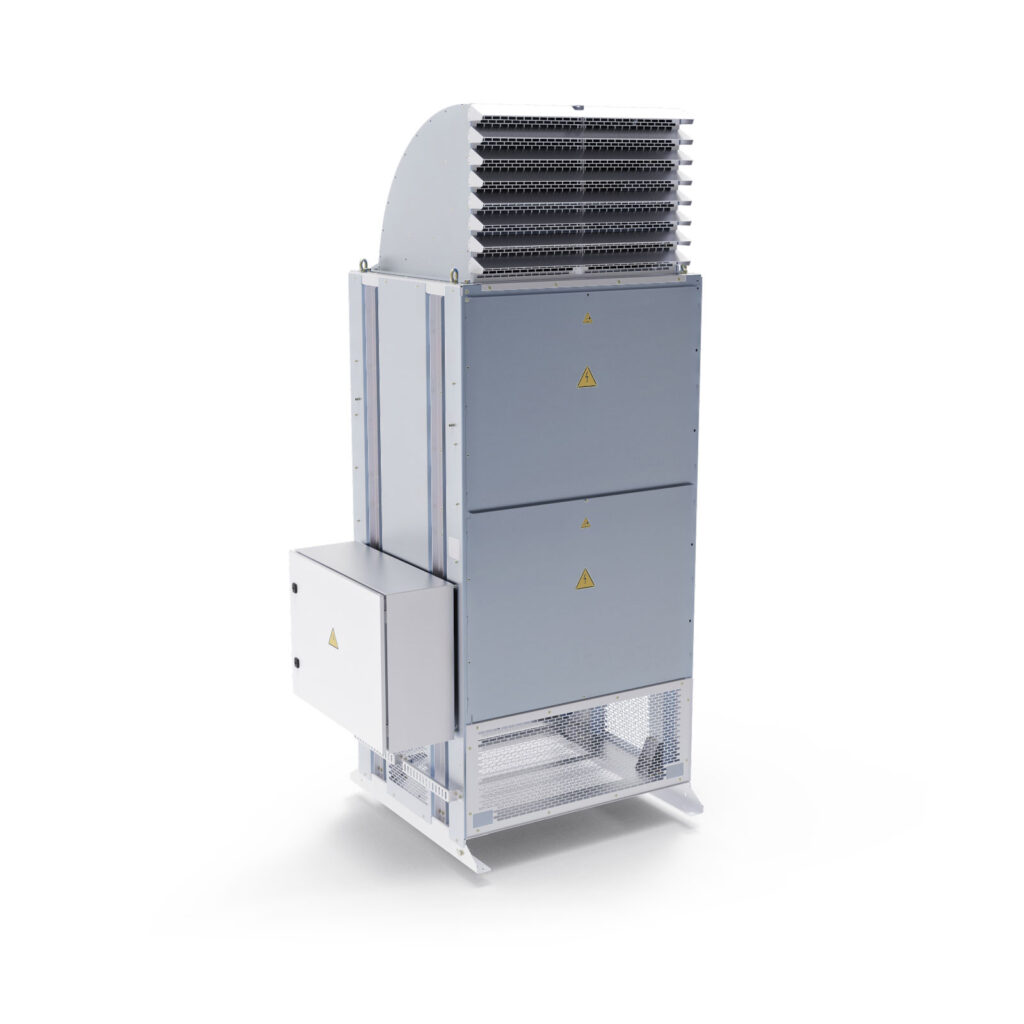

Load Bank Stationary

Pc  up to 5 MW
R  individual
IP  IP20, IP23, or higher

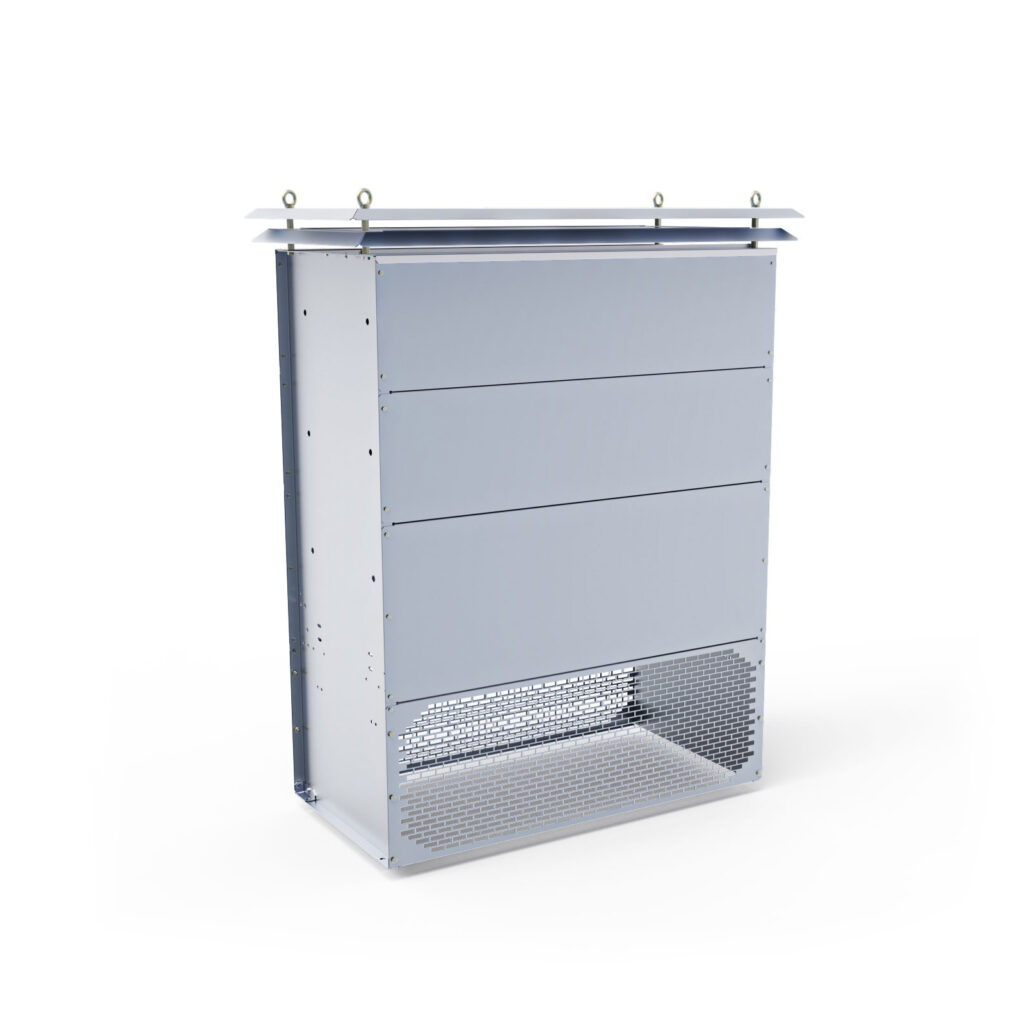

Steel grid resistors

Pc  5 ÷ 60 kW std (up to 160 kW)
R  0.1 ÷ 100 Ω
IP  IP00, IP23

Tube resistors

Pc  120 ÷ 1300 W
R  0.2 ÷ 16,000 Ω
IP  IP00, IP20
PROTECTIVE FUNCTION PACKAGES
F   Standard Feeder (ANSI 50/51, 51BF, 50N/51N, 68, 86)
FF   Advanced Feeder (ANSI 46, 49, 50/51, 51BF, 50N/51N, 68, 79, 86)
V   Standard Voltage (ANSI 27, 59, 81, 68, 86)
VV   Advanced Voltage (ANSI 27, 27V1, 59, 59N, 59V2, 68, 81, 86)
M   Motor (ANSI 37, 46, 48, 49, 51LR, 64, 66, 68, 86)
Dir   Directional (ANSI 67, 67N)
AF   Additional Functions
Note: 68, 86 not present in N-DIN series
