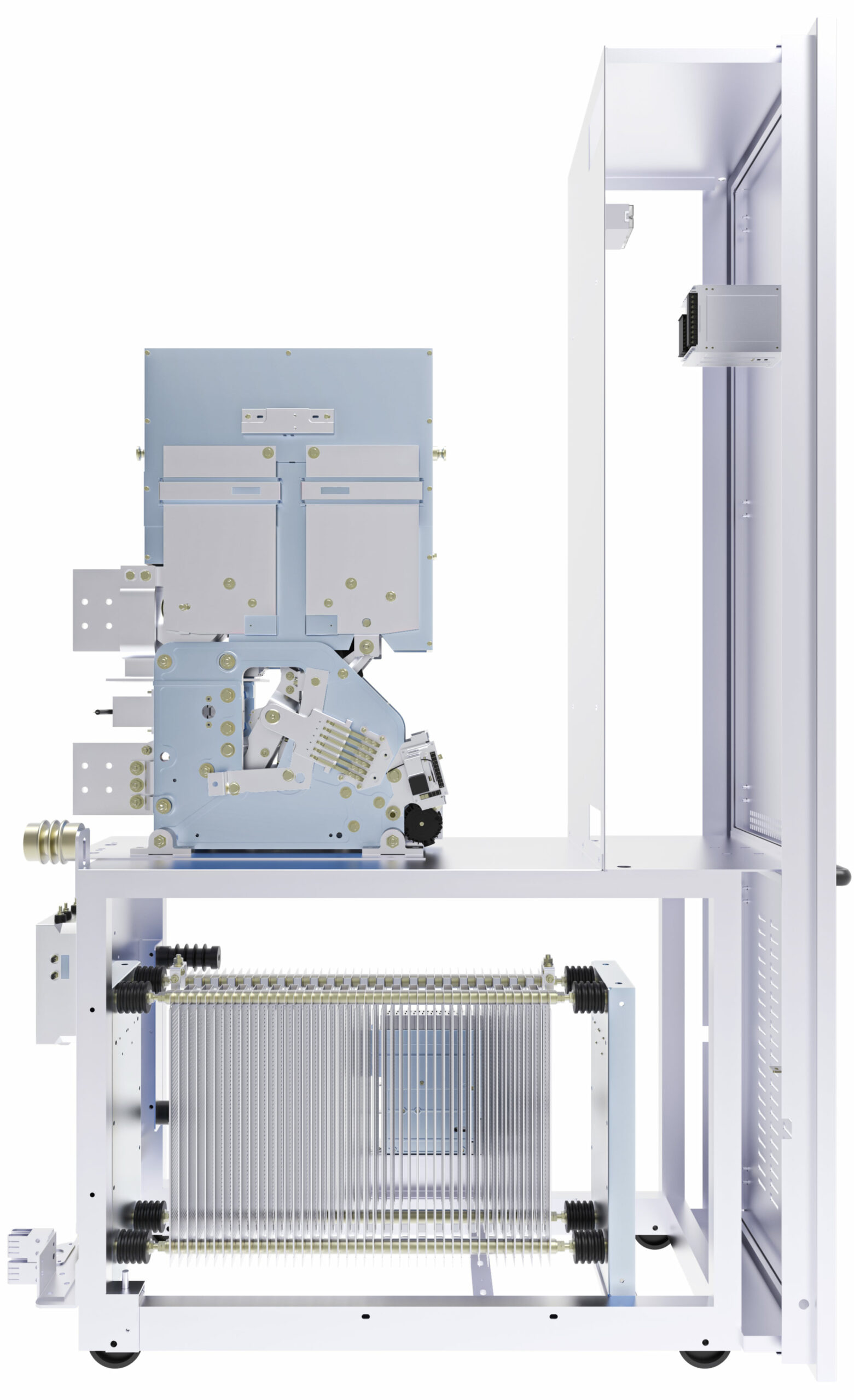

FEEDER 3 kV

Transducer MHIT +RI +RV

Receivers for Voltage and Current measurements from MHIT-TVI
Fiber Optic input from MHIT transmitter
Four configurable analog outputs
One relay output for alarm and internal fault or lack of power supply
Commissioning software for configuration from PC
Din rail mounting

HSCB IR6040 EVO RFI

100kA of breaking capacity
Compliant with RFI standard RFI_DPRIM-STF-IFS SS 364a
4kA thermal current
Multiple programmable tripping point

Relay UMLC

Compliant with RFI specification RFI_DMA_IM_LA_SSE_360 / RFI_DMA_IM_LA_SP_IFS_362
Configuration via PC tool
Digital technology
Touch screen interface
Programmable logic

Transducer MHIT TVI

Single unit for current and voltage measurements up to 4kV
Fully insulated and safe thanks to fiber optic connection
Copper wire output available in combination with MHIT Receivers
Accuracy Class 0.2

Resistor 20 Ohm 3.6 kV

20 Ohm resistance
According to RFI standard UTR300/14
