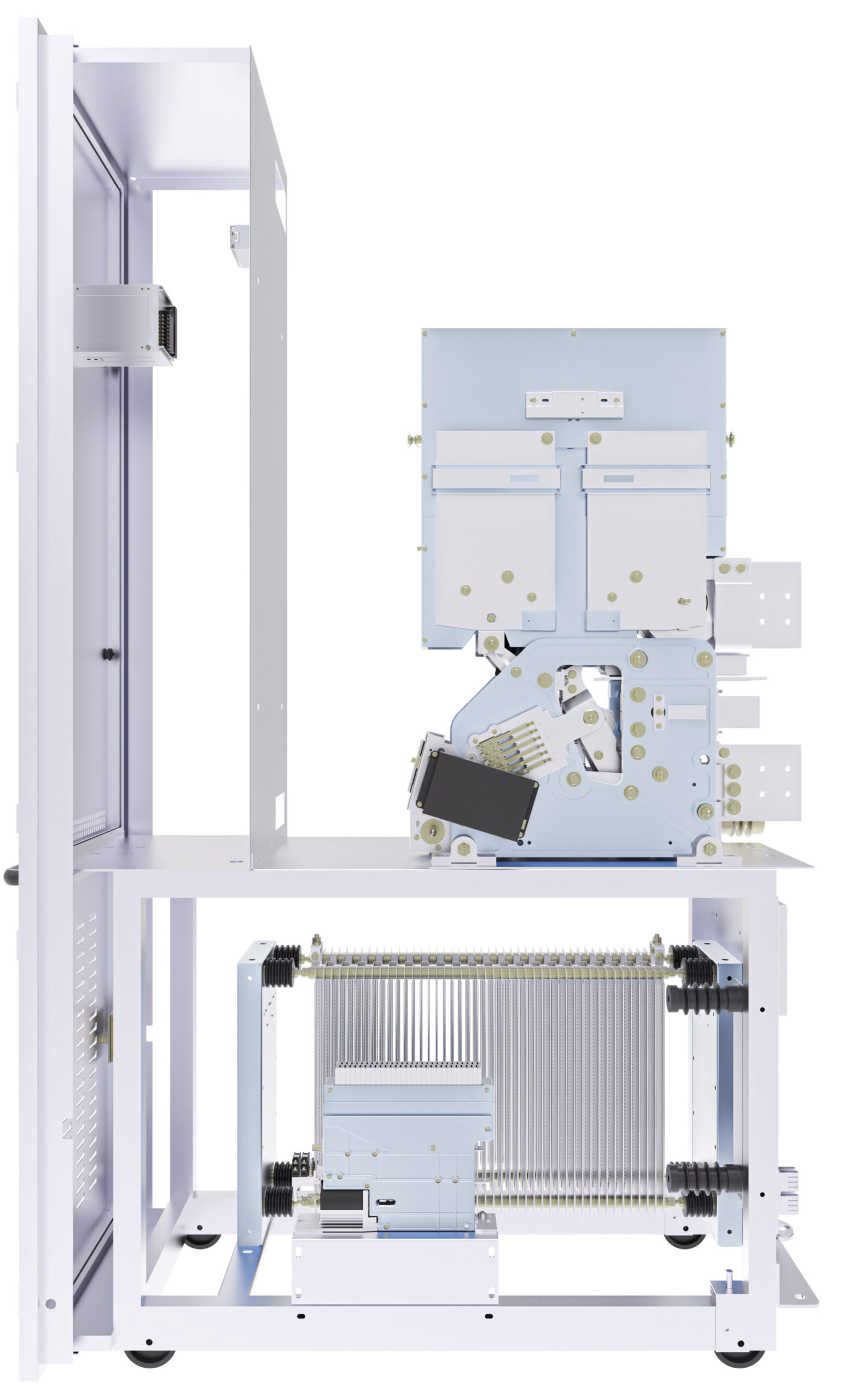

FEEDER 3 kV

Transducer MHIT +RI +RV

Receivers for Voltage and Current measurements from MHIT-TVI
Fiber Optic input from MHIT transmitter
Four configurable analog outputs
One relay output for alarm and internal fault or lack of power supply
Commissioning software for configuration from PC
Din rail mounting

HSCB IR6040 EVO RFI

100kA of breaking capacity
Compliant with RFI standard RFI_DPRIM-STF-IFS SS 364a
4kA thermal current
Multiple programmable tripping point

Relay UMLC

Compliant with RFI specification RFI_DMA_IM_LA_SSE_360 / RFI_DMA_IM_LA_SP_IFS_362
Configuration via PC tool
Digital technology
Touch screen interface
Programmable logic

Contactor LTHH250 1P RFI

3600 V Rated Operational Voltage
270A breaking capacity
250A Thermal Current
Compliant with RFI standard TE608/ dec 95 and addendum RFI-DTCST/A0011/P/2021/0000124 dated 17 feb 2021
RFI cat. 794/090 certified

Resistor 20 Ohm 3.6 kV

20 Ohm resistance
According to RFI standard UTR300/14
