Feeder Breaker

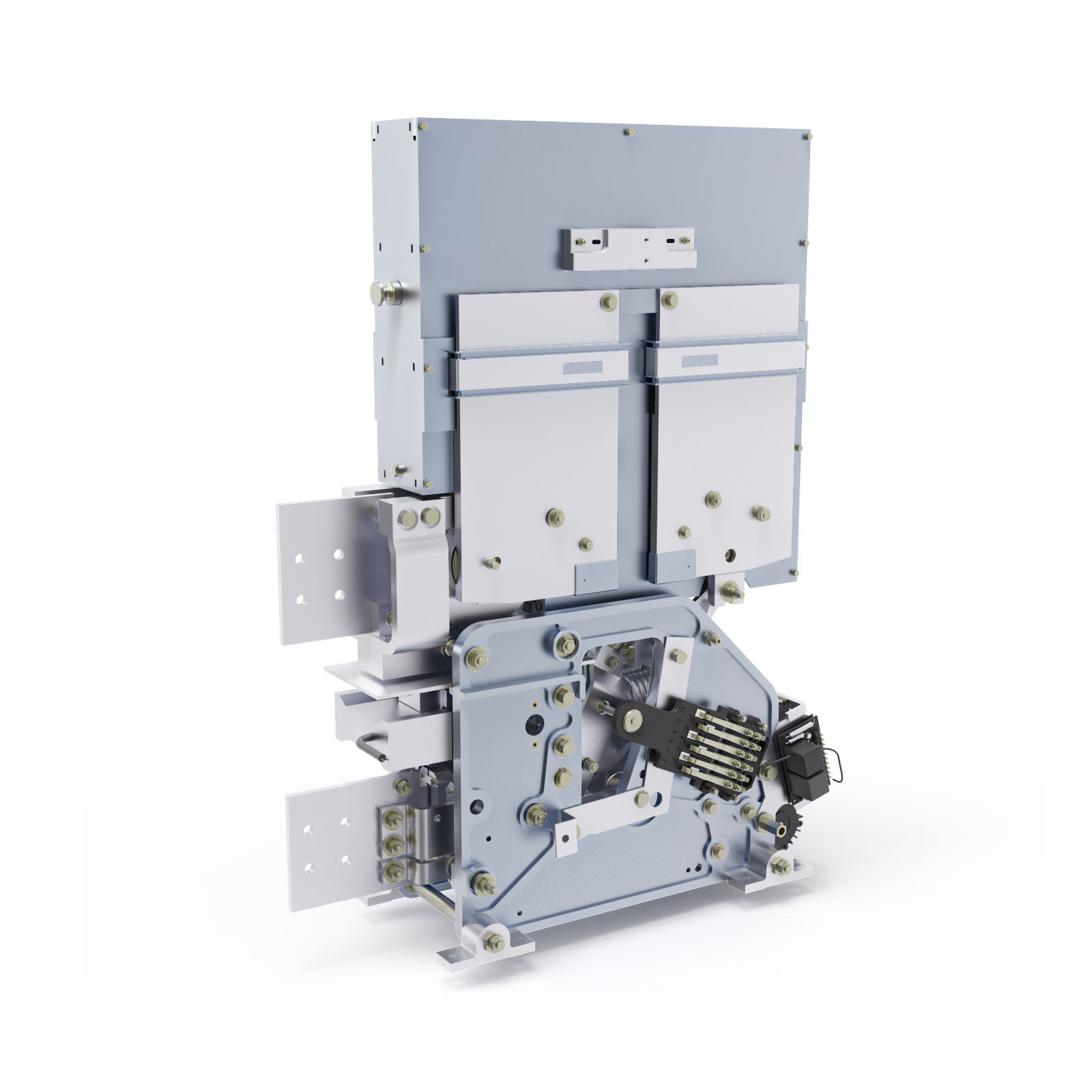

Feeder Breaker are used to supply the power required by the rail sections. They are installed on the circuit after OMNIBUS and before the overhead contact lines or the third rail. Depending on the applicable standards (IEC or ANSI), the feeder breaker can be monostable or bistable. The monostable version is based on a holding-coil system (IEC only), while the bistable version is based on a permanent magnet holding system (both IEC and ANSI).

We offer a wide variety of designs fitting most installation requirements.

  • High electrical durability guaranteed with ceramic arc-chute and arcing contacts
  • Intrinsic safe device thanks to magnetic latch
View IR3000F Series
View IR4000F Series
View all Breaker's Series
Image Image Image Image Image Image Image Image Image Image Image
Series
Size
Arc chute


 IR3000F
3015 | 3030
09LP

 IR3000F
3015 | 3030
09MP

 IR3000F
3015 | 3030
09HP

 IR4000F
4030 | 4045
09M

 IR4000F
4060 | 4080
09M

 IR3000F
3015 | 3030
18MP

 IR3000F
3015 | 3030
18HP

 IR4000F
4030 | 4045
18MP

 IR4000F
4060 | 4080
18MP

 IR4000F
4030 | 4045
36MP

 IR6000F
6040 EVO RFI
70kA | 100kA
Rated Operational Voltage [Vdc] 900 900 900 900 900 1800 1800 1800 1800 3600 3600
Thermal Current Ith(A)= @ 40°C [A] 1500 | 3000 1500 | 3000 1500 | 3000 3000/4500 6000 | 8000 1500 | 3000 1500 | 3000 3000 | 4500 6000 | 8000 3000 | 4500 4000
Holding System Holding coil Holding coil Holding coil Holding coil Holding coil Holding coil Holding coil Holding coil Holding coil Holding coil Holding coil
Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet Permanent Magnet
Rated Short-Circuit Current INss/TNC [kA/ms] 30/31.5 50/31.5 70/63 125/100 125/100 30/31.5 50/63 100/63 100/63 50/63 70/63 | 100/63
Duty F [kA/ms] 30/0
(peak 42.6kA)		 50/0
(peak 71kA)		 70/0
(peak 100kA)		 125/0
(peak 180kA)		 125/0
(peak 180kA)		 30/0
(peak 42.6kA)		 50/0
(peak 71kA)		 100/0
(peak 148kA)		 100/0
(peak 140kA)		 50/0
(peak 71kA)		 50/0 | 70/0
(peak 71 | 100 kA)
Duty E [kA/ms] 19.5/20.5 32.5/20.5 35/31.5 62.5/50 62.5/50 19.5/20.5 25/31.5 50/31.5 50/31.5 35/31.5 35/31.5
Duty D [kA/ms] 6/31.5 6/31.5 6/63 8/100 16/100 6/31.5 6/63 8/63 16/63 8/63 8/63
Dimensions Length L [mm] 548 548 526 689 841 548 526 689 841 689 768
Width W [mm] 265 265 264 330 338 265 264 330 338 330 307
Height H [mm] 395 475 721 916 916 475 721 916 916 916 1015 | 1083
Weight [kg] 44 54 75 180 190 | 195 54 75 180 190 | 195 180 208
